Product Information
1. Advatanges QT8-15 automatic concrete hollow block making machine
A: Automatic PLC Operation, Big Capacity
B: Hydraulic Press, High Strengh of Block and Paver
C: Produce Sizes of Hollow block, Solid Brick, Paver and Curbstone by changing molds
D: Suitable for Large-scale Block Factory
2. Produciton Capaicty of QT8-15 fully automatic concrete hollow block making machine

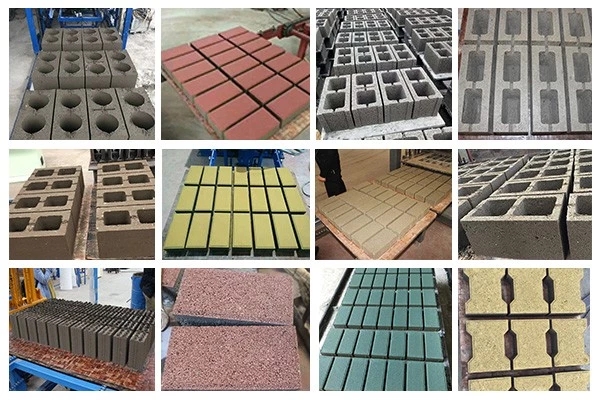

QT8-15 fully automatic hydraulic block making machine can produce sizes of hollow block, solid brick, paver and curbstone by changing molds. the following are production capacity for some popular sizes of blocks and pavers.
|
NO. |
Block Size |
Produciton Capacity |
Photo |
|
1 |
Hollow/Solid Block 400*200*200mm (8 Inch) |
8 blocks in one mold 15360 blocks in 8 hours |
|
|
2 |
Hollow/Solid Block 400*150*200mm (6 Inch) |
10 blocks in one mold 19200 blocks in 8 hours |
|
|
3 |
Hollow/Solid Block 400*100*200mm (4 Inch) |
16 blocks in one mold 30720 blocks in 8 hours |
|
|
4 |
Hourdis Block 500*150*200mm |
6 hourdis in one mold 11520 hourdis in 8 hours |
|
|
5 |
S Shaped Paver 225*112.5*60/80mm |
21 pavers in one mold 33600 pavers in 8 hours |
|
|
6 |
I Shaped Paver 200*160*60/80mm |
15 pavers in one mold 24000 pavers in 8 hours |
|
|
7 |
Rectangle Paver 200*100*60/80mm |
24 pavers in one mold 38400 pavers in 8 hours |
|

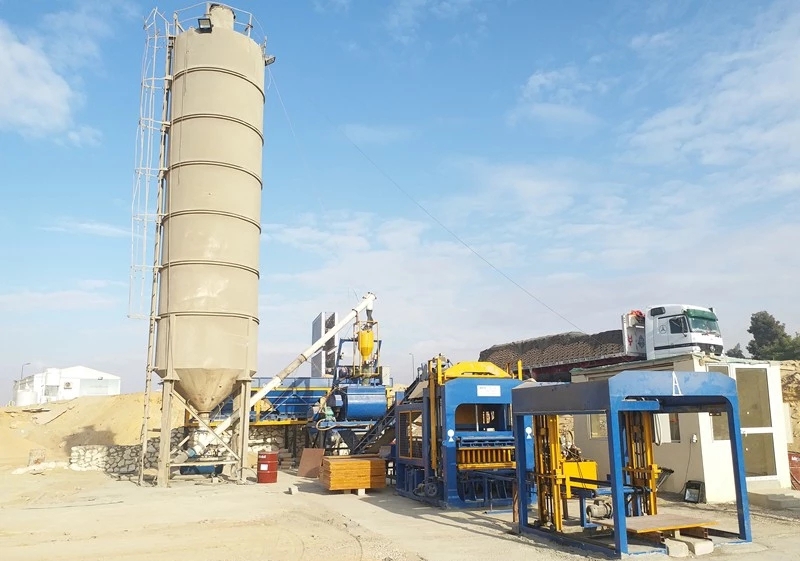

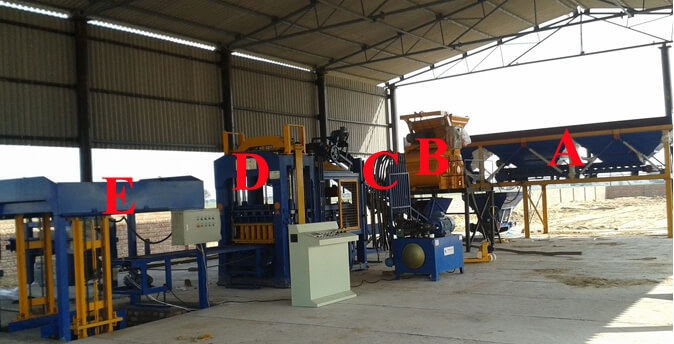

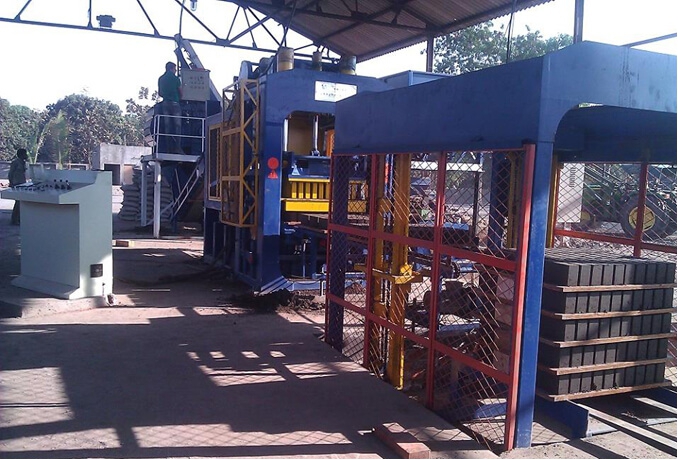

Detailed Introduction of QT8-15 automatic hydraulic concrete cement block making machine
|
SPECIFICATIONS FOR Low price QT 8-15 building glass blocks making machine in ghana |
|||
|
PLD1200 Batching machine |
POWER |
KW |
12 |
|
Productivity |
m3/h |
56 |
|
|
Weight |
KGS |
4000 |
|
|
JS750 Concrete mixer |
Main performance parameters |
MM |
5525*3100*560 |
|
Cycle time |
s |
72 |
|
|
WIGHT |
KGS |
6500 |
|
|
QT8-15A BLOCK MACHINE |
Hydraulic system |
KW |
22 |
|
Weight |
KGS |
7900 |
|

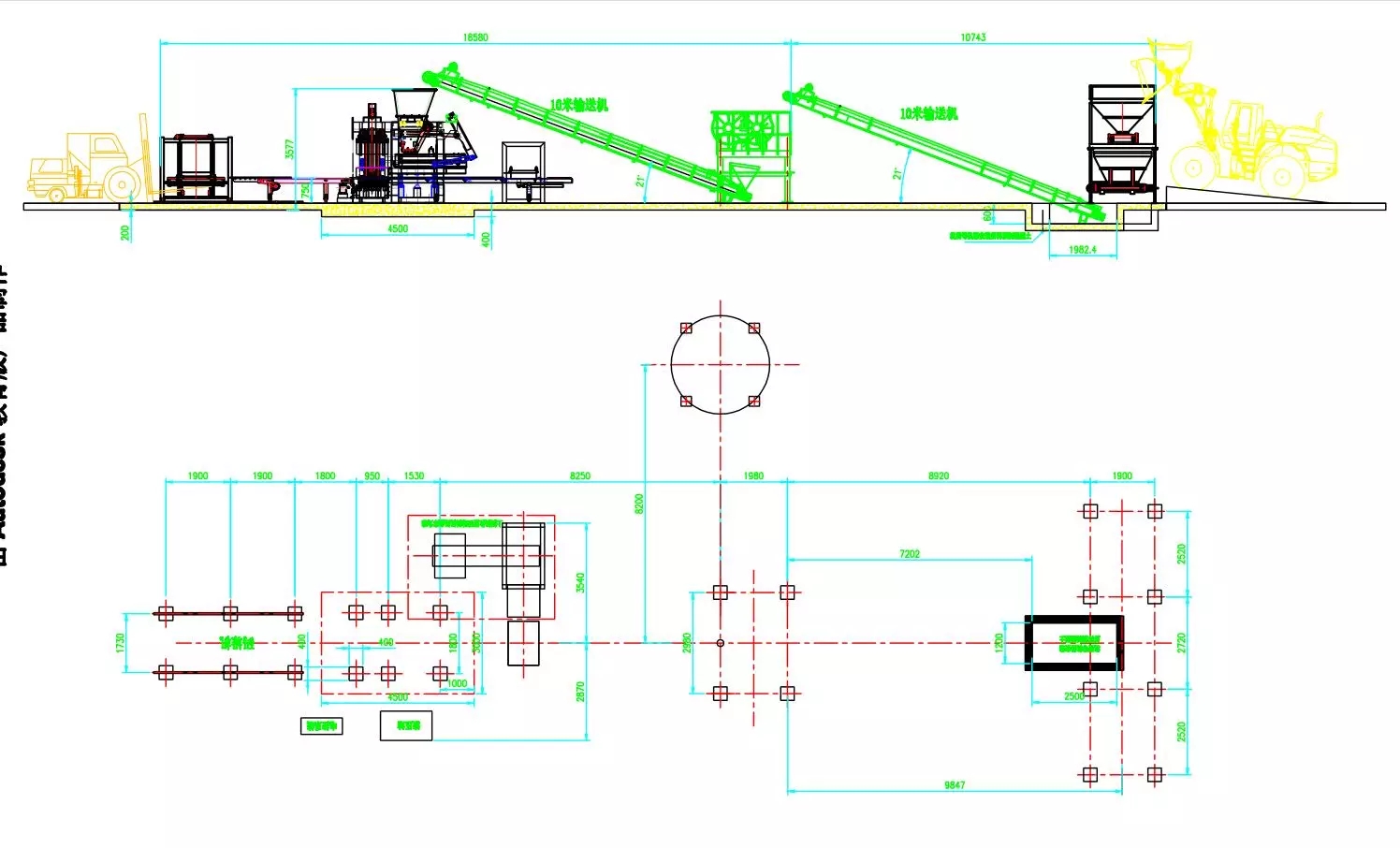

1. Area: Workshop area: 150-200m2, all factory area 3000m2, the bigger, the better.
2. Workers : four or five
3. Ratio of raw material:cement 8%-10% sand 30%-40% stone:50%-60%,about cement :sand : stone is1:4:5.
4. hollow block weight:(400*200*200) :17KG,(400*150*200):13.5KG,(400*100*200):10KG
5. raw material consumption per day:160-170T
6. water consumption per day:3%-5% of raw material
7 blocks: can make all kinds of hollow and solid blocks, the pressure hollow blocks is about 8-10Mpa, solid is about 10-12Map. Can be widely used in low walls .
8.how to cure the bocks: in very hot area, about many hours can be stacked from the pallets, in the first 5-7days must spray water to cure, about 7 days can be sell. in usual area, about one day later can be stacked from pallets, in the first 5-7 days must spray water to cure. About 14 days can be sell.
