Product Information
1. Advantages:
A: Diesel Power or Electric Power
B: 2 Bricks in One Time and 2800 Bricks in 8 Hours
C: Semi automatic, Easy Operation
D: Produce Designs of Interlocking Brick, Pavers and Hydraform Block by changing molds.
E: Suitable for Medium-scale Brick Factory
2. Designs of Bricks and Pavers
CY2-25 eco brava clay interlocking brick making machine can produce designs of interlocking ecologica bricks, lego bricks, pavers and hydraform blocks by changing molds.

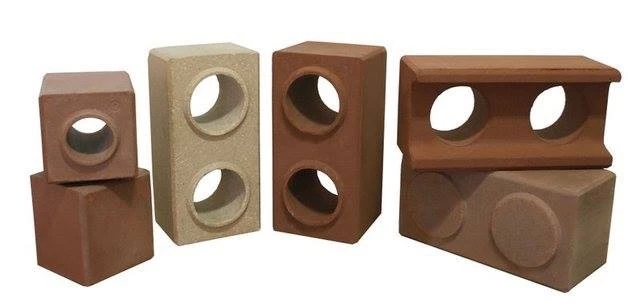

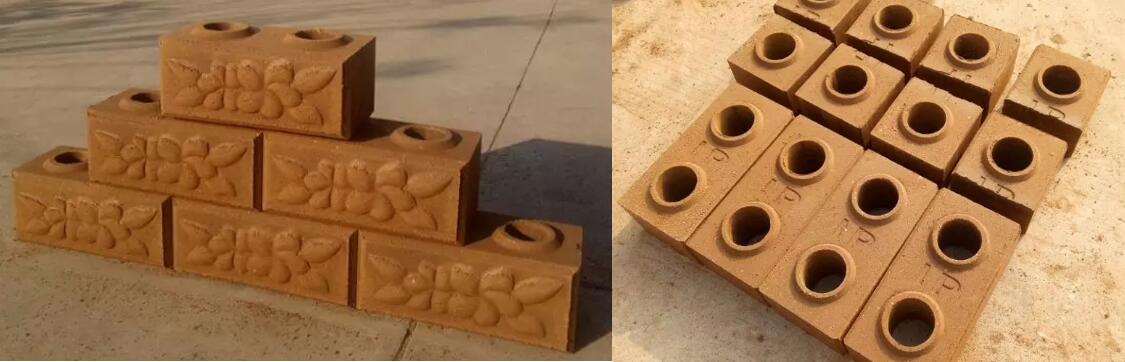

The following are some designs of bricks for your reference.
3. Product Description

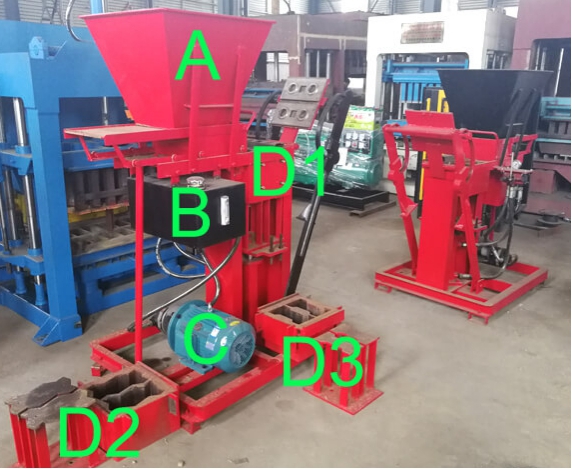

A: Part Name of GL2-25 eco brava clay interlocking brick making machine
|
Item |
Name |
Function |
|
A |
Material Hopper |
Storage of material for mold |
|
B |
Hydraulic Station |
Storage of Hydraulic Oil |
|
C |
Electiric Motor or Diesel Engine |
4KW /5.5HP |
|
D1 |
Mould |
Produce interlocking brick |
|
D2 |
Extra Mold |
Changing mold for different design of brick and pavers |
|
D3 |
Extra Mold |
Changing mold for different design of brick and pavers |
|
Total Power: 4KW/5.5HP. Electriicty must be3 phase, 50/50HZ, 380V/440V/220V |
||

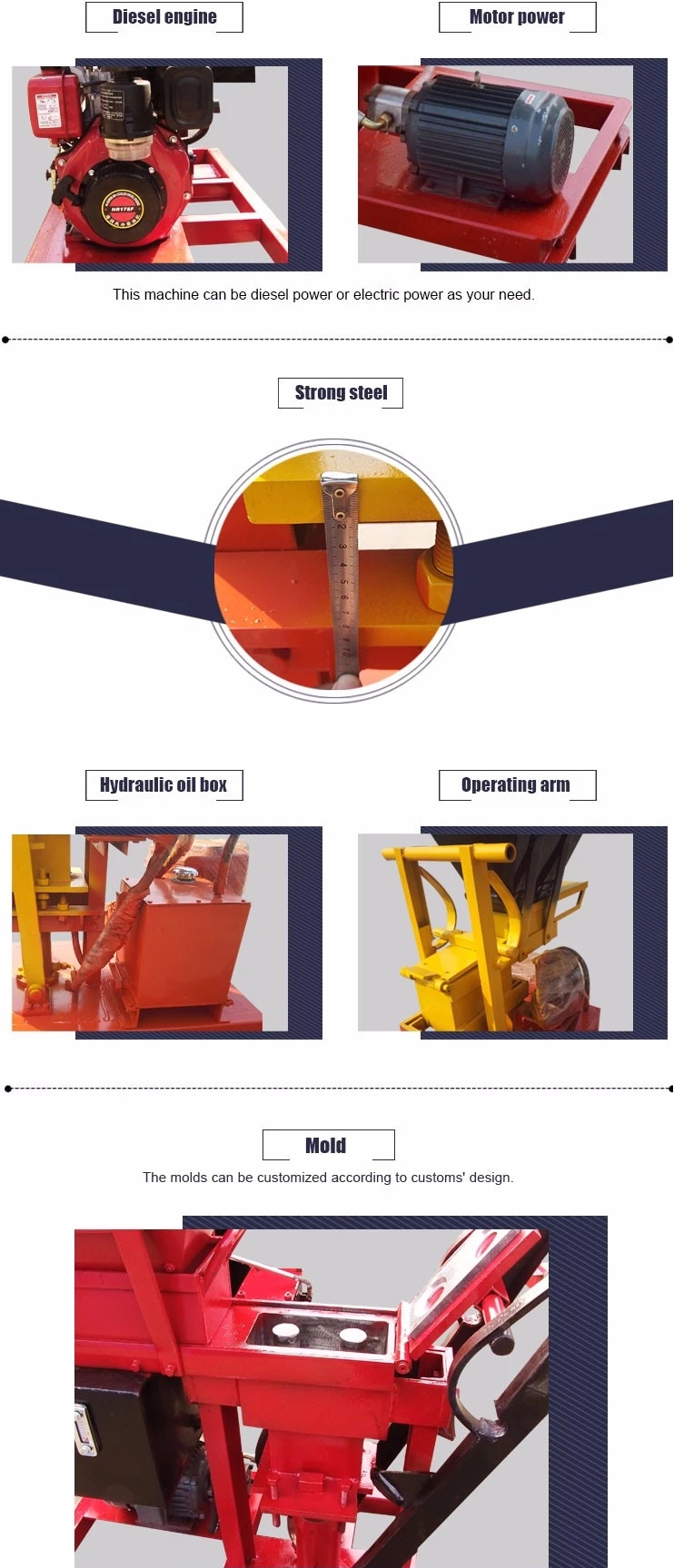

B: Details showing of CY2-25 eco brava clay interlocking brick making machine

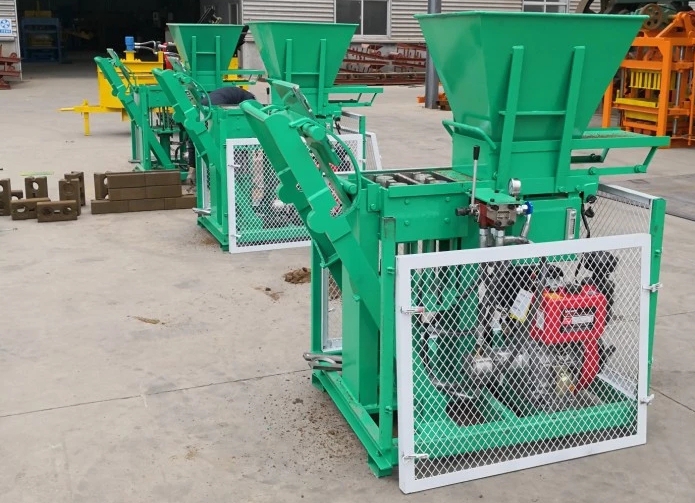

4. Photos Show of CY2-25 eco brava clay interlocking brick making machine.

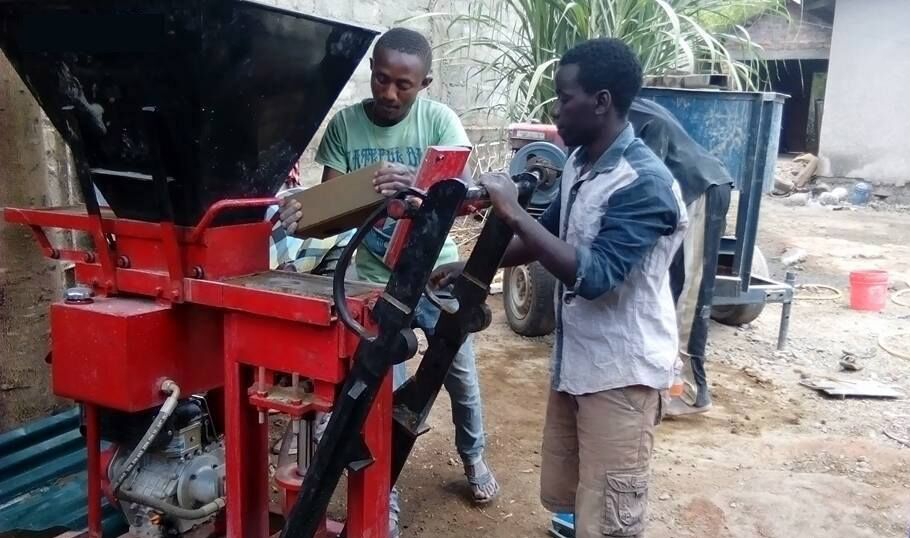

Customer projects
C: Workers Number: 3Workersin Total
One Worker for Loading soilintoMaterial Hopper
One Worker for Operating Brick Machine
One Worker for Carry fresh brick to curing sites
D: Factory Area； 600-1000M2
E: Material Ratio for Bricks:5%-10% cement and 90-95% Soil
F: Raw Material Consumption in one day
We take300*150*100bricks as example and recommend8%cement
|
Size of Brick |
300*150*100mm |
|
Photo of Brick |
|
|
Material Ratio |
8% cement and 92% soil |
|
Strength of Brick |
6-7Mpa |
|
Capacity of Brick |
2800 bricks in one day |
|
Consumption of Cement |
1200 KG in one day |
|
Consumption of Soil |
15000 KG in one day |
