Product Information
1. Advantages:
A: 40Ton Hydraulic Press, High Strength of Interlocking Brick and Pavers
B: 5 Bricks in One Time and 14400 Bricks in 8 Hours
C: Automatic PLC Operation
D: Produce Designs of Interlocking Brick, Pavers and Hydraform Block by changing molds.
E: Suitable for Large-scale Brick Factory
2. Designs of Bricks and Pavers
CY5-10 automatic hydraulic interlocking compressed earth bock making machine can produce designs of interlocking bricks, pavers and hydraform blocks by changing molds.

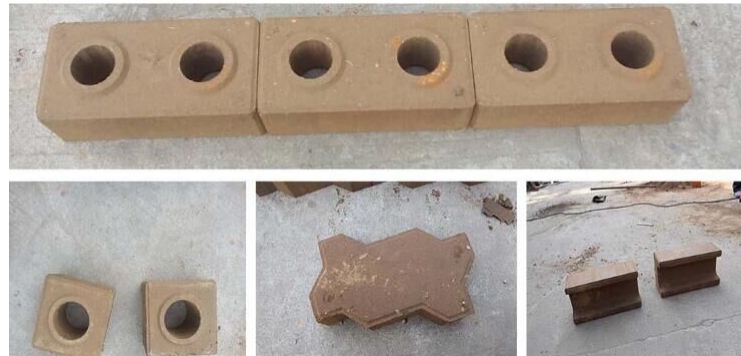

The following are some designs of bricks for your reference.
3.Product Description
A: Electric Power List for SYN5-5 automatic hydraulic soil clay interlocking lego brick making line
|
NO. |
Item |
Power |
Function |
|
A |
3M Belt Conveyor |
0.75KW |
Carry Soil into Soil Crusher |
|
B |
Soil Crusher |
5.5KW |
Crusher Soil into Fine Soil |
|
C |
3M Belt Conveyor |
0.75KW |
Carry Soil from Soil Crusher to Soil Screen |
|
D |
Soil Screen |
1.1KW |
Select Fine Soil |
|
E |
3M Belt Conveyor |
0.75KW |
Carry Fine Soil from Soil Screen to Mixer |
|
F |
JQ500 Mixer |
7.5KW |
Mix Soil, Sand, Cement and Water |
|
G |
5M Belt Conveyor |
0.75KW |
Carry Mixed Material from Mixer to Brick Machine |
|
H |
SYN5-5 Brick Machine |
15KW |
Produce designs of interlocking bricks and pavers |
|
I |
Brick Receiver |
0.75KW |
Carry Fresh bricks from Brick Machine |
|
Total Power: 32.85KW , Electricity must be 3 phase, 50/60HZ, 380V/440V/220V |
|||
C: Workers Number: 4 Workers in Total
One Worker for Loading soil to Belt conveyor for Crusher
One worker for loading cement and water into Mixer
One Worker for Operating Brick Machine
One Worker for Carry fresh brick to curing sites
D: Factory Area； 1500-2000M2
Shelter Area: 60M2
E: Material Ratio for Bricks: 5%-10% cement and 90-95% Soil
F: Raw Material Consumption in one day
We take 300*150*100 bricks as example and recommend 8% cement
|
Size of Brick |
300*150*100mm |
|
Photo of Brick |
|
|
Material Ratio |
8% Cement and 92% Soil |
|
Strength Of Brick |
6-7Mpa |
|
Capacity of Brick |
14400 Bricks in one day |
|
Consumption of Cement |
6500 Kg in one day |
|
Consumption of Soil |
79000 KG in one day |

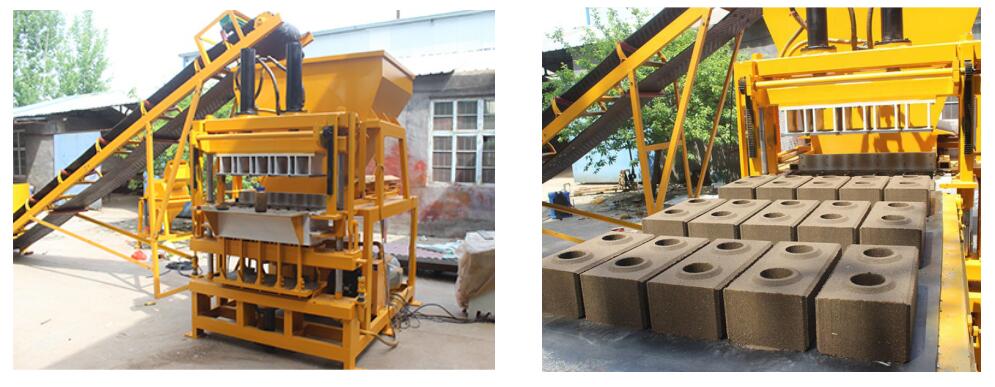

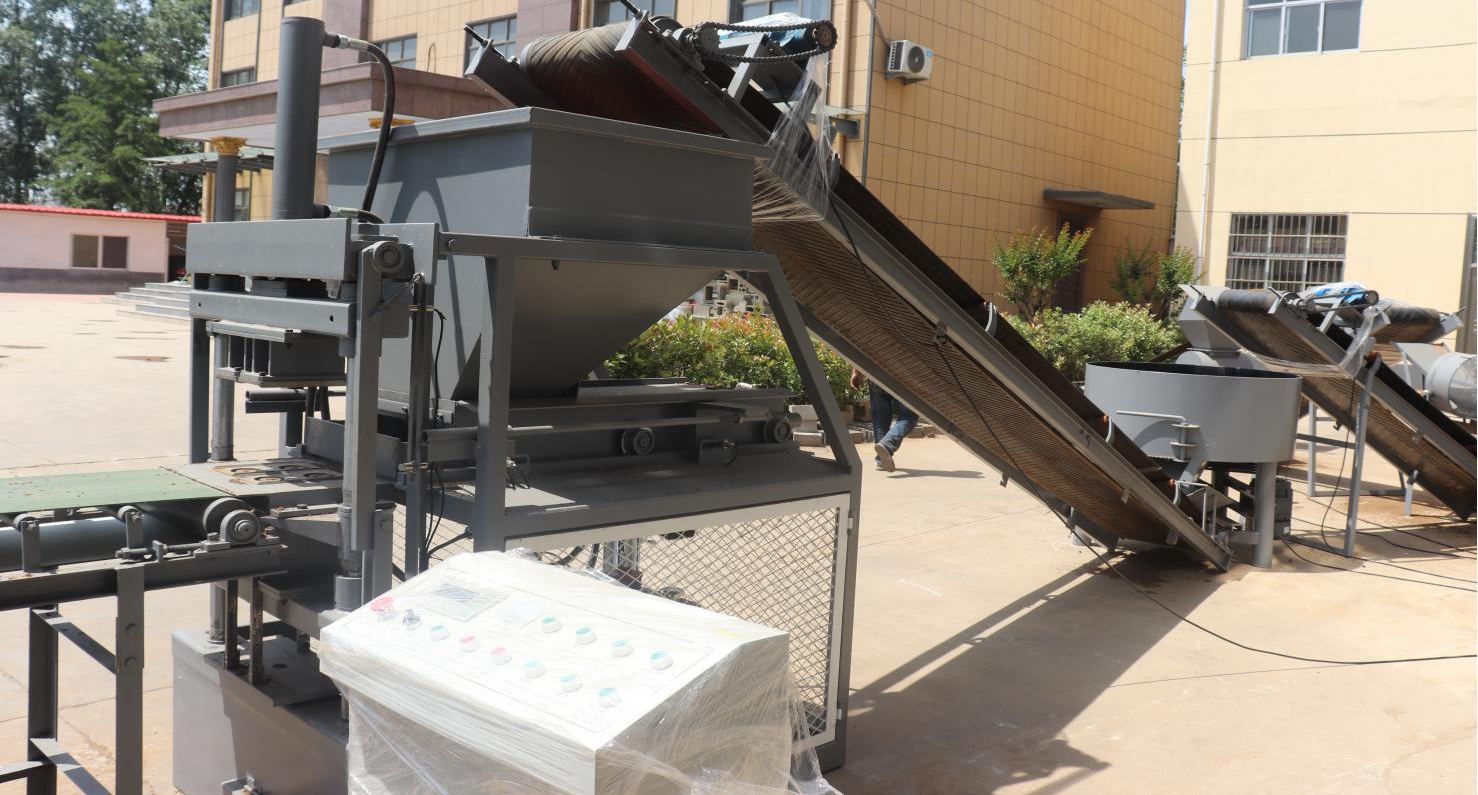

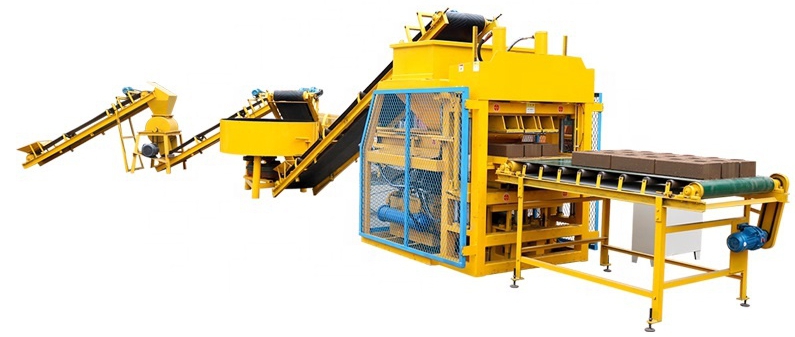

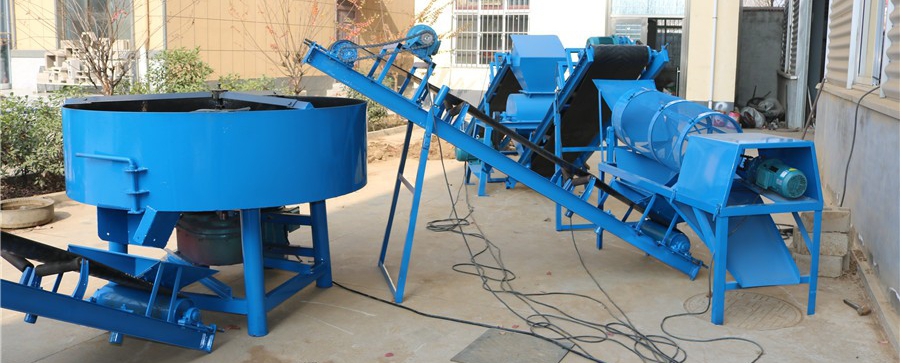

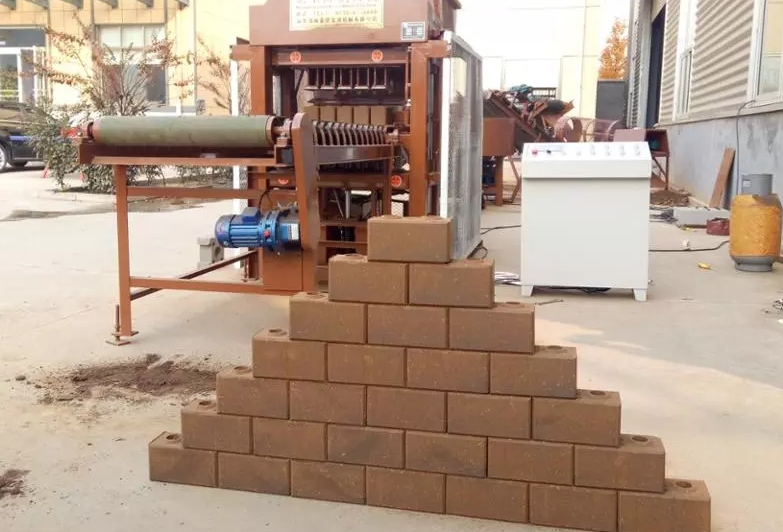

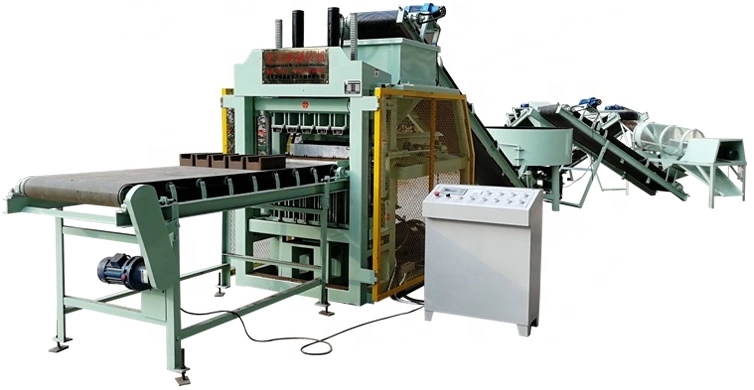

4: Photos shows of CY5-10 automatic hydraulic soil interlocking brick press machine
