Product Information
![](dedenew/uploads/chuangyun/40-2/1.jpg)

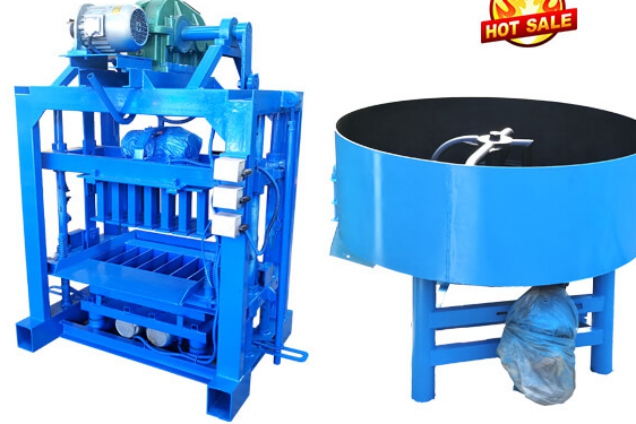

1. Advantages of QT40-2 Manual Concrete Vibrated Block Moulding Machine
A: Manual Operation, Easy Maintenance
B. Produce sizes of hollow block, solid brick, hourdis, pavers and kerb by changing molds.
C: Low Investment
D: Suitable for Small-scale block factory and New Starters
2. Production Capacity of QT40-2 Manual Concrete Vibrated Block Moulding Machine
QT40-2 manual concrete block making machine can produce sizes of hollow block, solid brick, interlocking pavers and curbstone by changing moulds. the following are production capacity for some popular sizes of blocks and pavers.
No. |
Block Size |
Production Capacity |
Photo of Block |
1 |
Hollow/Solid Block 400*200*200mm (8 Inch) |
4 blocks in one mold 2880 blocks in 8 hours |
|
2 |
Hollow/Solid Block 400*150*200mm (6 Inch) |
5 blocks in one mold 3600 blocks in 8 hours |
|
3 |
Hollow/Solid Block 400*100*200mm (4 Inch) |
7 blocks in one mold 5040 blocks in 8 hours |
|
4 |
Hourdi Block 500*150*200mm |
5 hourdis in one mold 3600 hourdis in 8 hours |
|
5 |
S Shaped Paver 225*112.5*60/80mm |
12 pavers in one mold 8640 pavers in 8 hours |
|
6 |
I Shaped Paver 200*160*60/80mm |
8 pavers in one mold 5760 pavers in 8 hours |
|
7 |
Rectangle Paver 200*100*60/80mm |
14 pavers in one mold 10080 pavers in 8 hours |
|
There are some designs of blocks and pavers for your reference.

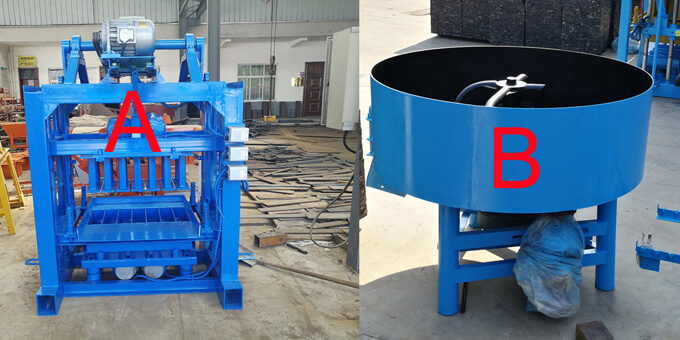

3. Detailed Introduction of QT40-2 Manual Concrete Vibrated Block Moulding Machine
![](dedenew/uploads/chuangyun/40-2/7.jpg)
SPECIFICATIONS
Engine Power |
Whole line powerA |
3sets |
8.8kw |
Vibration motorB |
2sets |
4.4kw |
|
Main performance parameters |
Diemension |
mm |
1350*1460*1800 |
Weight of host machine |
kg |
1800 |
|
Pallet size |
mm |
850*450*30 |
|
Main Specifications
|
Molding cycle |
s |
40 |
Vibration force |
Kn |
30 |
|
Rated pressure |
Mpa |
10-18 |
|
Production/Capacity |
Block size(L*W*H)mm |
Pcs/Mold |
PCS/8 Hours |
400*200*200 hollow |
4 |
2240-2800 |
|
400*150*200 hollow |
5 |
2880-3600 |
|
400*100*200 hollow |
7 |
4000-5040 |
|
240*115*52 solid brick |
18 |
12960 |
B: Working Video of QT40-2 manual concrete cement block brick making machine
C: Workers Number: 4-5 Workers
One Workers to load material into Mixer
One Worker to operate block machine and add pallet into block machine
One Worker to load material into block machine
One or two Workers to carry fresh blocks to Curing Sites
D: Factory Area: 600-1000m2
E: Pallet Number: 600 pallet.
F: Material Ratio for Blocks: (by Weight)
a: 10% Cement, 30% Sand and 60% Small Stone
b: 10% Cement, 90% Stone Powder
c: 10% Cement, 30% fly ash and 60% Stone Powder

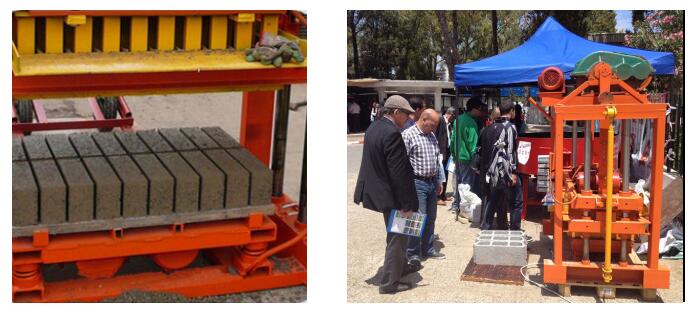

4. Real Photos Show of QT40-2 manual concrete cement block brick making machine
![](dedenew/uploads/chuangyun/40-2/8.jpg)
![](dedenew/uploads/chuangyun/40-2/9.jpg)
