Product Information
![](chuangyun/uploads/20190612/2_10/1.jpg)
1. Advantages:
A: 20 Ton Hydraulic Press, High Strength of Interlocking Brick and Pavers
B: 2 Bricks in One Time and 5760 Bricks in 8 Hours
C: Automatic PLC Operation
D: Produce Designs of Interlocking Brick, Pavers and Hydraform Block by changing molds.
E: Suitable for Medium-scale Brick Factory

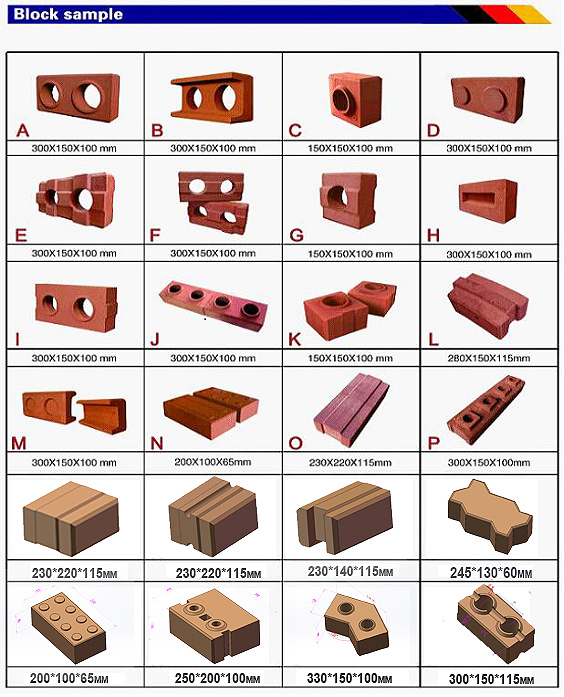

2. Designs of Bricks and Pavers
CY2-10 Automatic Hydraulic Soil Cement Interlocking Brick Making Machine can produce designs of interlocking lego bricks, pavers and hydraform blocks by changing molds.
The following are some designs of bricks for your reference.
![](chuangyun/uploads/20190612/2_10/2.jpg)

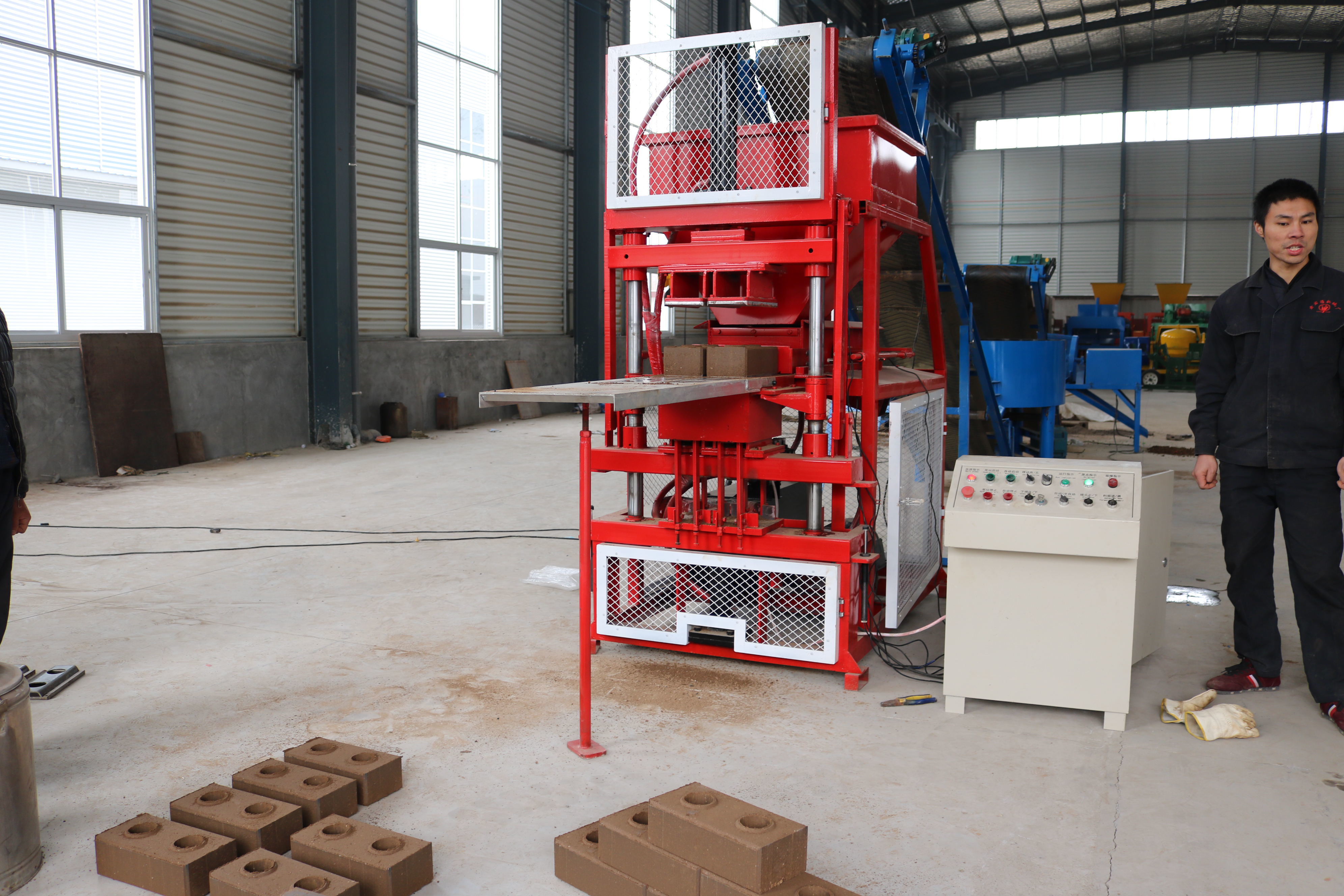

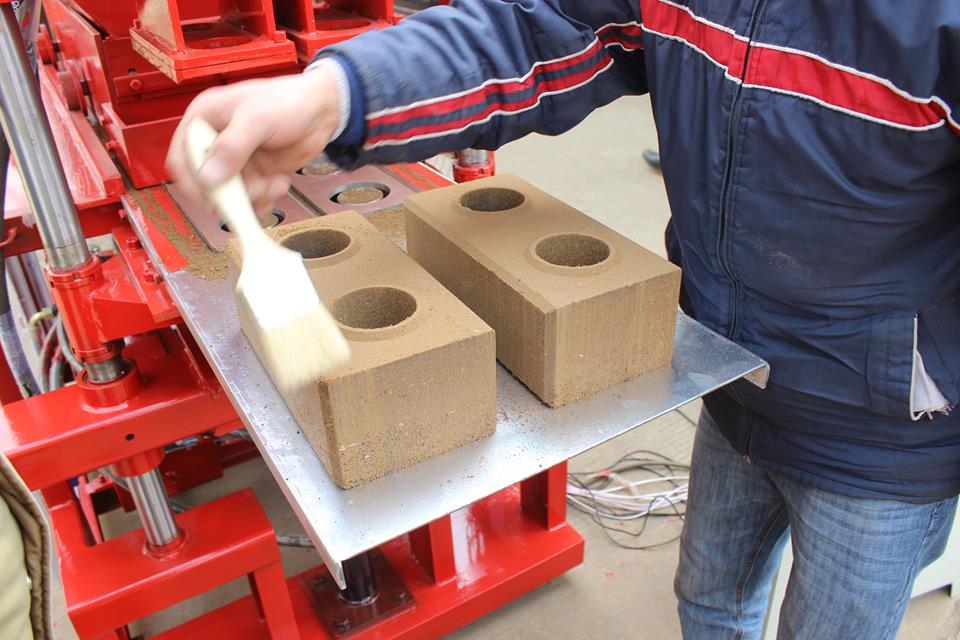

4: Photos shows of CY2-10 automatic hydraulic interlocking clay brick and block making machine
![](chuangyun/uploads/20190612/2_10/3.jpg)
![](chuangyun/uploads/20190612/2_10/4.jpg)

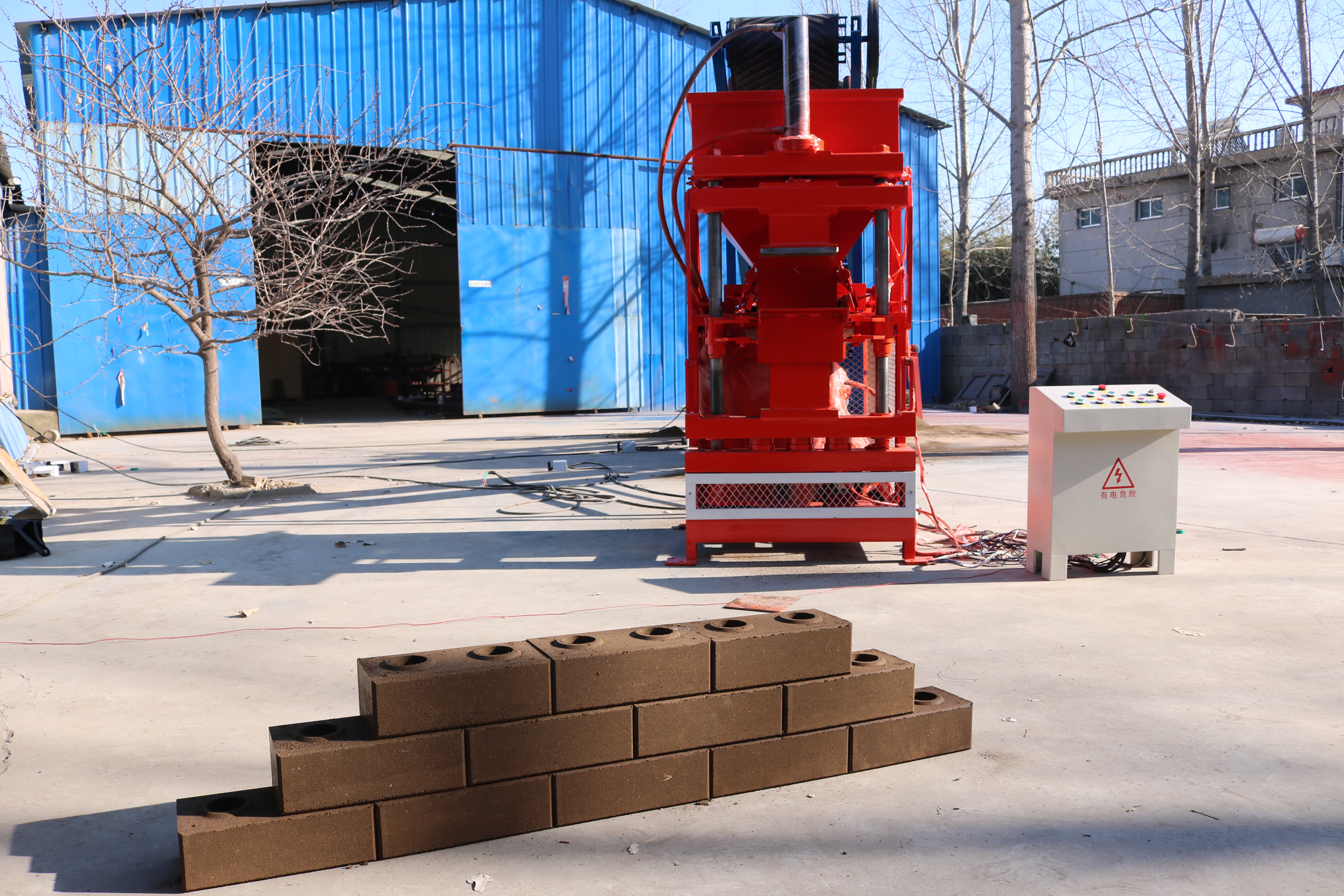

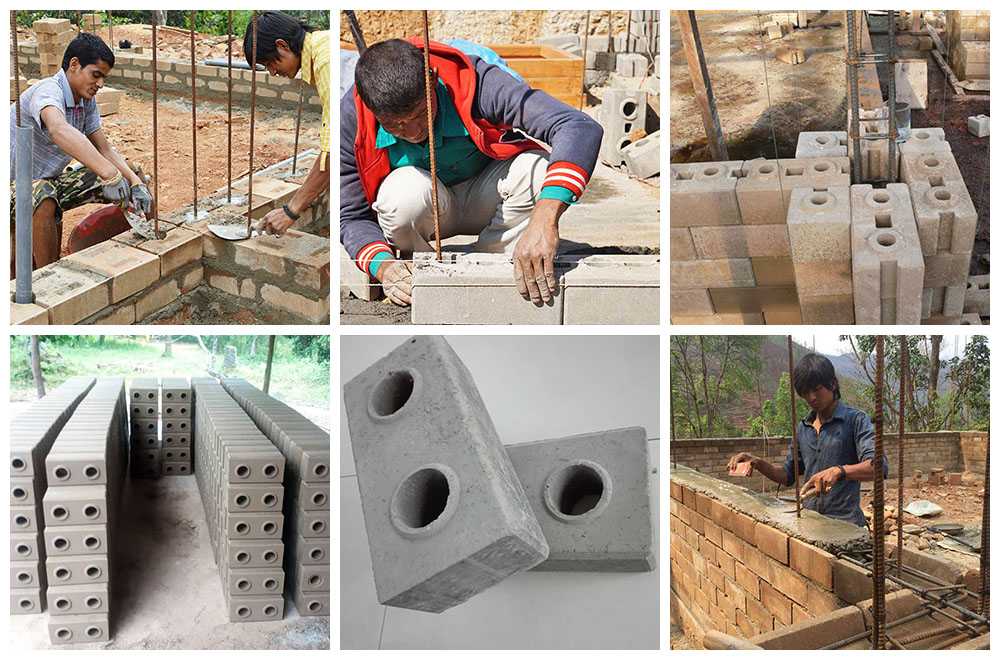

CY2-10 automatic clay interlocking brick making machine for Uganda, Nepal customer
![](chuangyun/uploads/20190612/2_10/5.jpg)
![](chuangyun/uploads/20190612/2_10/6.jpg)
3. Product Description

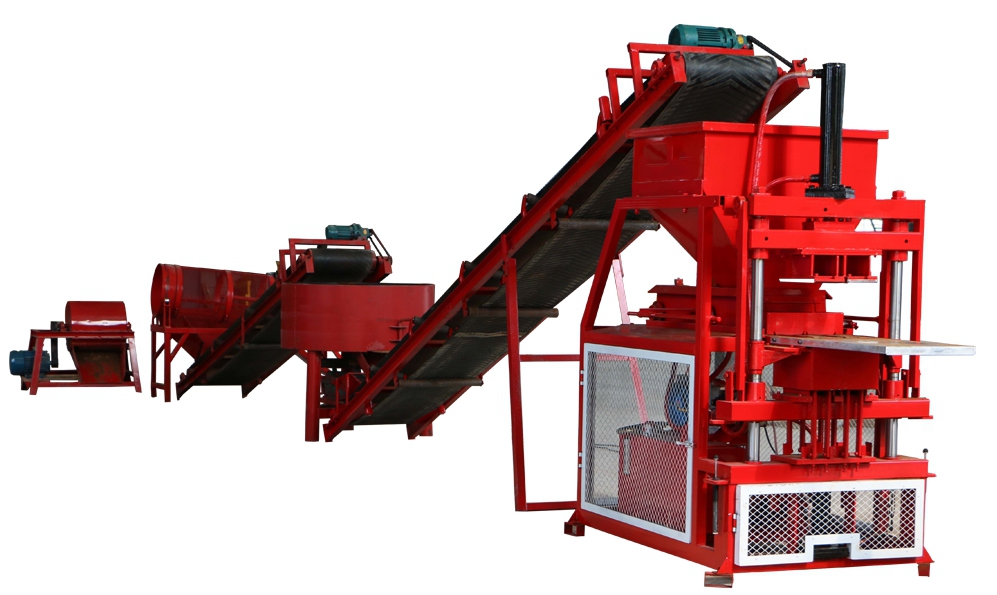

A: Electric Power List for CY2-10 automatic hydraulic soil clay interlocking lego brick making line
Item |
Name |
Power |
Function |
A |
Soil Crusher |
5.5KW |
Crush soil into fine soil |
B |
Soil Screen |
1.1kw |
Select fine soil |
C |
3M Belt Conveyor |
0.75KW |
Carry fine soil from Soil Screen to Mixer |
D |
JQ350 Mixer |
5.5KW |
Mix raw material, such as soil, cement and water |
E |
5M Belt Conveyor |
0.75KW |
Carry mixed material from Mixer to Brick Machine |
F |
CY2-10 Brick Machine |
7.5KW |
Produce designs of interlocking bricks and pavers |
Note: SYN1-5 automatic brick making line total power: 21 .1KW Electriicty must be 3 phase, 50/50HZ, 380V/440V/220V |
B: Workers Number: 4 Workers in Total
One Worker for Loading soil into Crusher
One Worker for Loading soil into Screen and load cement and water into Mixer
One Worker for Operating Brick Machine
One Worker for Carry fresh brick to curing sites
C: Factory Area; 1500-2000M2
Shelter Area: 60M2
D: Material Ratio for Bricks: 5%-10% cement and 90-95% Soil
E: Raw Material Consumption in one day
We take 300*150*100 bricks as example and recommend 8% cement
Size of Brick |
300*150*100mm |
Photo of Brick |
|
Material Ratio |
8% cement and 92% soil |
Strength of Brick |
6-7Mpa |
Capacity of Brick |
5760 bricks in one day |
Consumption of Cement |
2600 KG in one day |
Consumption of Soil |
31500 KG in one day |
F: Install Service:
We will supply customers install video and operation manual and we also can send our engineer to help you to intall machines and train workers.
