Product Information
![](chuangyun/uploads/20190612/1_30/1.jpg)
![](chuangyun/uploads/20190612/1_30/2.jpg)

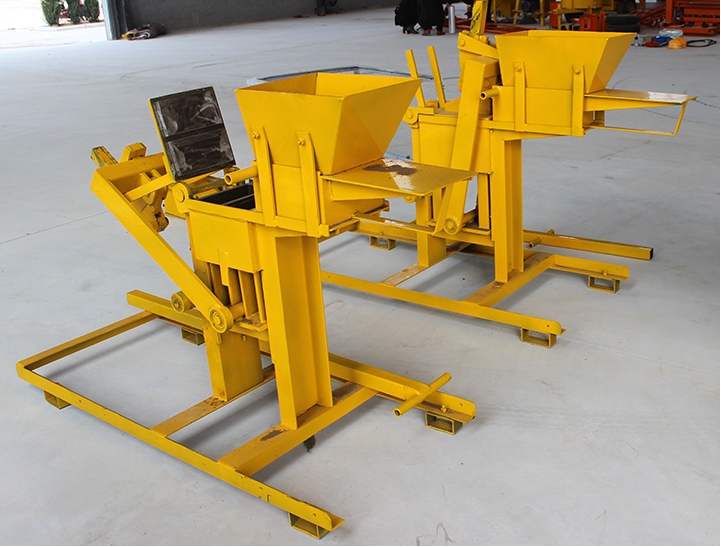

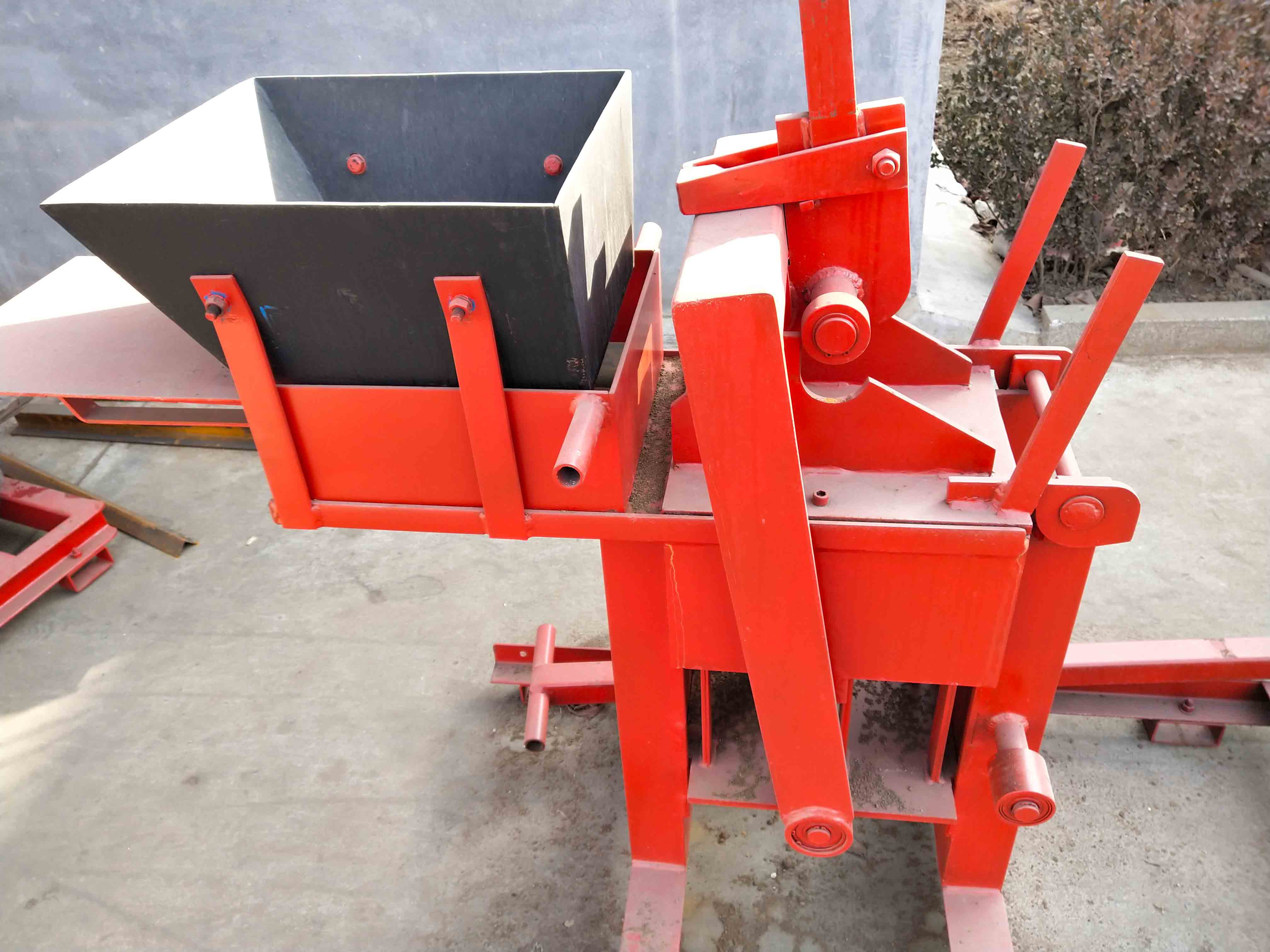

CY1-30 Manual Soil Cement interlocking Hydraform Block Making Machine can produce designs of interlocking bricks. not only hydrafrom block, but also ecological brick.
![](chuangyun/uploads/20190612/1_30/3.jpg)

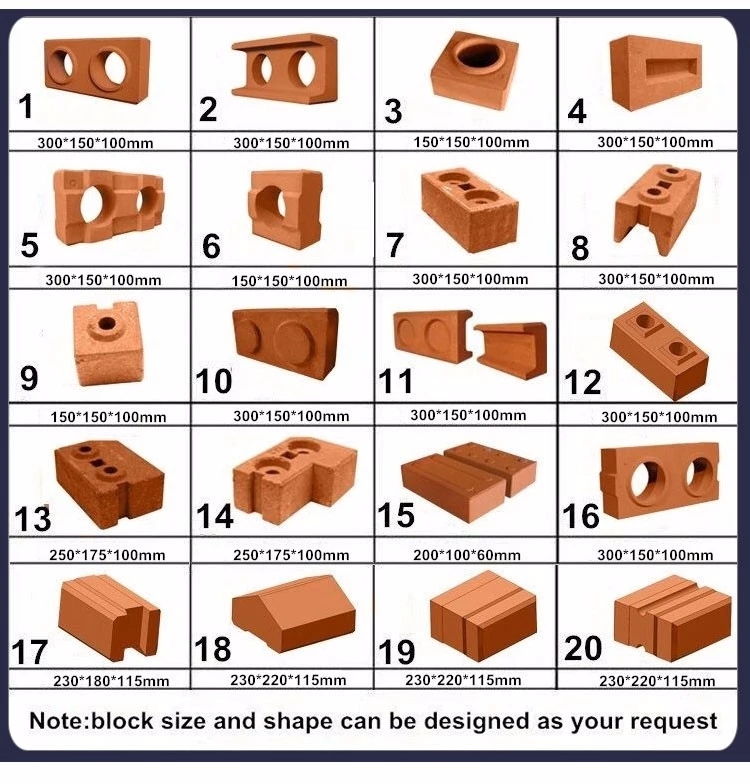

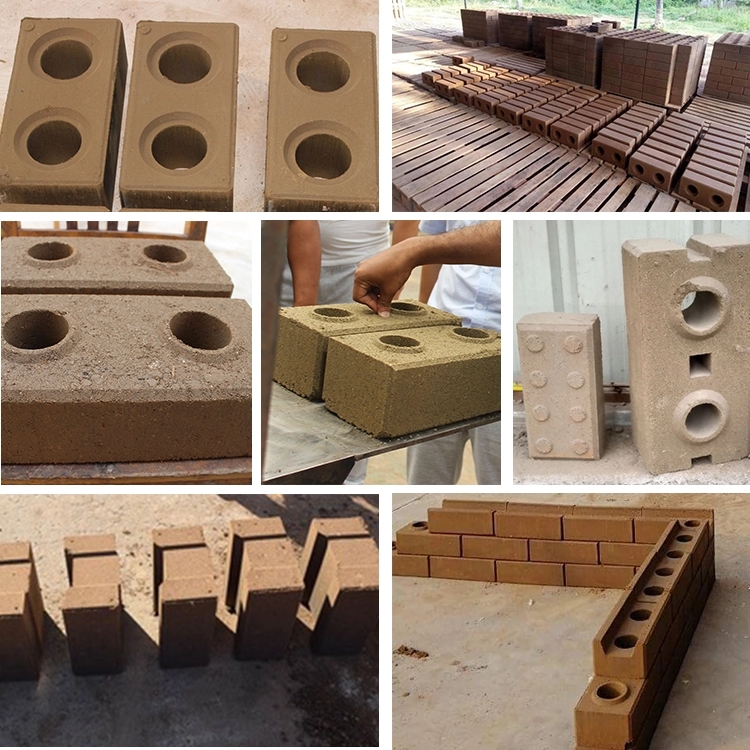

Here are designs of Clay Interlocking Bricks
![](chuangyun/uploads/20190612/1_30/4.jpg)
Materials proportion of the WT2-40 small scale clay brick making machine made in china
This is the most popular proportion in making block making machine:
1.cement,clay
Raw Materials |
Quantity per piece |
Water |
3% |
Cement |
6-8% |
Clay |
80-90% |
Other specity |
You can change the proportion depend on your needs. This block is heavy,but strong |
2.Full clay
Raw Materials |
Quantity per piece |
Water |
3% |
Clay |
90-95% |
Other specity |
You can change the proportion depend on your ne |
TECHNICAL SPECIFICATION
Model |
CY1-30 |
Shaping Cycle |
30 Seconds |
Rated Pressure |
6MPa |
Electricity Power |
No Need Electricity |
Capacity |
1 bricks per time, 960 bricks per 8 hours |
Machine Size |
900*300*1200mm |
Machine Weight |
180KG |

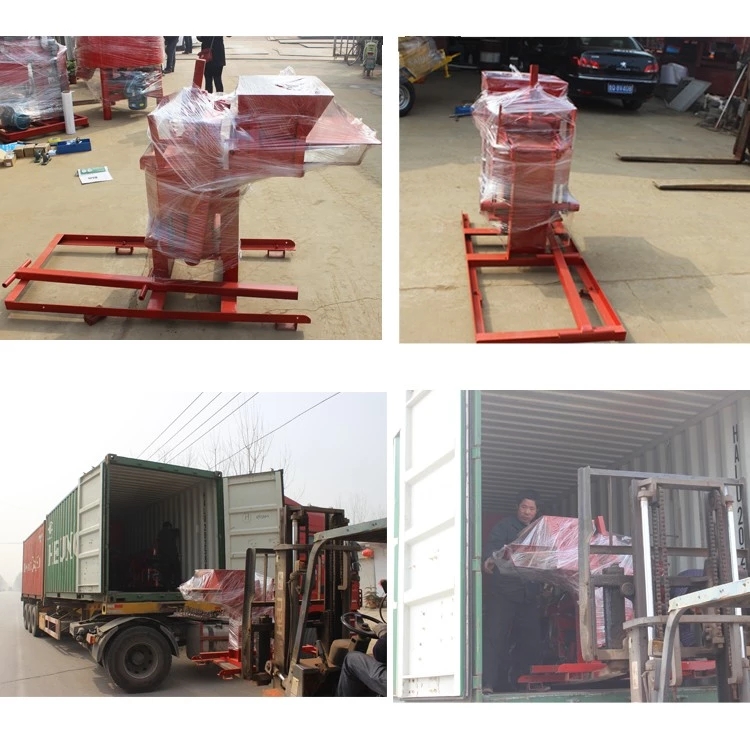

CY1-30 Manual Soil Cement Interlocking Hydraform Block Making Machines ready for shipment.
![](chuangyun/uploads/20190612/1_30/5.jpg)
